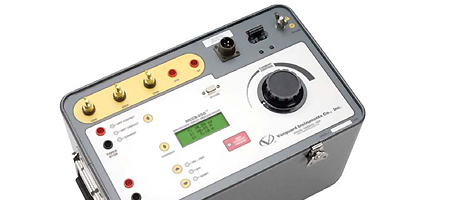

MCCB-250 (250A Molded case circuit breaker tester)
-
- MCCB-250
- : 250A Molded case circuit breaker tester
External Current Input
The MCCB-250 also provides an external current input (0 – 10 A). Both internal and external current source readings can be viewed at the same time.
Current Source
The MCCB-250 has 4 current-source outputs(5 A @ 120 Vac, 25 A @ 24 Vac, 120 A @ 6Vac, 250 A @ 3 Vac) that conduct the test current through the high-impedance load circuits.
Each current source can tolerate shortduration over-loads up to 4 times the rated current (1000 A max).
This feature is used for testing the instantaneous trip element of molded-case circuit breakers.
When using this feature, the selected test current is displayed on the LCD screen. When the MCCB-250 is used as a current source, the current flow time (the current-on period) is displayed on the LCD screen.
Documentation
- Model MCCB-250 User Manual
- Download PDF(4KB)*
- Model MCCB-250 Data Sheet
- Download PDF(360KB)*
