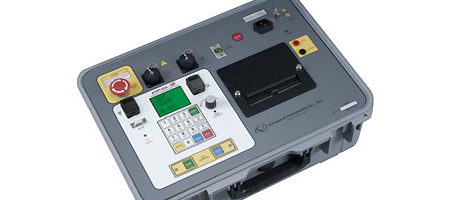

ATRT-03A S2 (Three Phase, AC/DC-Powered Transformer Turns-Ratio Tester with Built-in Printer)
-
- ATRT-03A S2
- : Three Phase, AC/DC-Powered Transformer Turns-Ratio Tester with Built-in Printer
The ATRT-03A S2 can be used as a standalone unit or can be computer-controlled.
It can be operated locally using its alpha-numeric keypad and rotary switch. Information is displayed
on a back-lit LCD screen (128 x 64 pixels) that is viewable in both bright sunlight and low-light levels.
Test reports can be printed in the fi eld on the unit’s built-in 4.5-inch wide thermal printer.
The ATRT03A S2 can store up to 112 test records and 128 test plans in Flash EEPROM.
Test records or test plans can be stored or transferred to and from a PC via the available interfaces (RS-232C port, USB port, USB Flash drive port).
Auto-Detect Transformer Configuration
The ATRT-03A S2 can automatically detect 130 different transformer types defi ned by ANSI, CEI/IEC, and Australian standards.
Outstanding features
• Ratio range: 0.8 ¬ 15,000
• Capable of detecting 130 different 3-phase transformer types defi ned by ANSI, IEC, and Australian standards
• 3 test voltages available: 8Vac, 40Vac, 100Vac
• Phase angle and excitation current measurement
• RS-232C and USB PC interfaces
• Built-in 4.5-inch wide thermal printer
Documentation
- Model ATRT-03A S2 User Manual
- Download PDF(4KB)*
- Model ATRT-03A S2 Data Sheet
- Download PDF(556KB)*
