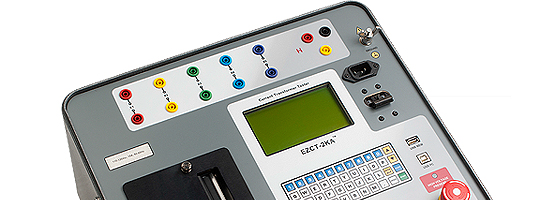

EZCT-2KA (Current Transformer Tester / 10,000 : 1)

  • EZCT-2KA
  • : Current Transformer Tester (2,000Vac / 10,000:1)


    Excitation Test
    The CT excitation test is performed using the ANSI/IEEE C57.13.1, IEC 60044-1 test method.
    The test voltage range for the CT excitation test (50 Vac, 300 Vac, 500 Vac, 1200 Vac or 2000 Vac) can be selected, and then the testvoltage is raised and lowered automatically by the EZCT-2KA.

    The excitation test voltage and current data is collected and stored in the unit’s internal memory. Any of the 10 possible combinations of X1 to X5 can be tested since all of the unit’s test leads can be connected to all of the CT output terminals at the same time.

    Up to 10 excitation tests can be stored in one record.
    Once the test is completed, test results can be printed and excitation curves can be plotted on the built-in 4.5-inch wide thermal printer.


    CT Winding Resistance Test
    The EZCT-2KA can also measure the DC resistance of the CT winding under test.

    The DC winding resistance measuring range is from 100 micro-ohms to 20 ohms.


    CT Ratio and Polarity Tests
    The EZCT-2KA determines the CT current-ratio using the ANSI/IEEE C57.12.90 measurement method.

    A test voltage is applied on any two terminals of the CT (X1 to X5), and the induced voltage is measured through the CT’s H1 and H2 terminals.

    The CT current-ratio is displayed on the screen and stored in memory.

    The current ratio measuring range is from 0.8 to 10,000 to 1.

    The CT winding polarity is displayed as a “+”sign (in-phase) or a “-” sign (out-of-phase) and is annotated with the phase angle in degrees.


    The EZCT-2KA automatically demagnetizes the CT udner test when performing an excitation test.
