Detect and address issues in IEC 61850 network traffic
-
- F6880 DNA(Digital Network Analyzer)
- : 디지털 네트워크 분석기
Detect and address issues in IEC 61850 network traffic

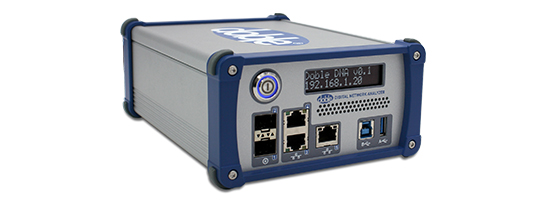

The Doble F6880 Digital Network Analyzer (DNA) reveals details that are essential to helping protection engineers and relay test technicians quickly resolve issues in IEC 61850 network traffic.
This compact and lightweight instrument is paired with powerful software that analyzes IED communications and provides diagnostic and analytical functionality in real time.
The DNA is a digital substation multimeter, capable of plotting IEC 61850 sampled values (SV) and GOOSE messages via real-time oscillography, phasor, and tabular data views.
It is also a system event recorder, capturing events via customizable triggers and producing analysis reports that allow the user to evaluate network performance and power system anomalies, like voltage sag, harmonic distortion, and underfrequency.
The F6880 compares SV and GOOSE information from SCL files with the present network traffic to identify system misconfiguration issues such as missing, duplicated, or unknown messages.
The DNA can even be left connected in the substation for extended periods, offering remote access and control.
Documentation
- Model F6880 DNA(Digital Network Analyzer) User Manual
- Download PDF(4KB)*
- Model F6880 DNA(Digital Network Analyzer) Data Sheet
- Download PDF(1MB)*
