Zyglo® ZL-27A (Post Emulsifiable Fluorescent Penetrant)


  • Zyglo® ZL-27A
  • : Post Emulsifiable Fluorescent Penetrant



    Zyglo® ZL-27A Post Emulsifiable Fluorescent Penetrant



    ZL-27A’s formulation has been designed to be impervious to water to protect it from over washing and permit more penetrant to remain in discontinuities for improved detection of small defects. It and other post emulsifiable penetrants require the application of a lipophilic or hydrophilic emulsifier to render them washable with water.

    Zyglo® ZL-27A fluoresces a bright greenish-yellow under ultraviolet radiation. Use of an ultraviolet light source with a peak wavelength of 365 nanometers, such as the MAGNAFLUX® ZB-100F fan-cooled black light, is recommended.

    Zyglo® ZL-27A penetrant meets OSHA requirements for Class III B liquids due to its high flash point and can be used in open dip tanks.

    Specifications Compliance:

    AMS-2644, ASTM E 1417, MIL-STD-271, ASME B & PV Code, Sec. V, MIL-STD-2132, Boeing BAC 5423 PSD 6-46 or 8-4, AECL, ASTM E 165, Boeing PS-21202

    Part Number and Container Size:

    01-3187-40: 5 Gallon Pail

    01-3187-30: 20 Gallon Drum

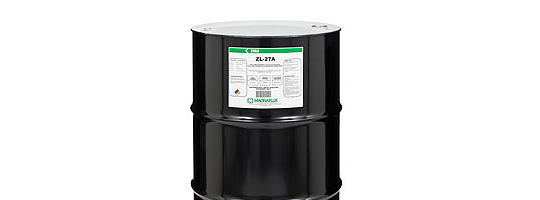

    01-3187-45: 55 Gallon Drum

    Also Available in 16oz. Aerosol Cans.

    Applications:  Zyglo® ZL-27A is typically used on castings, forgings, extrusions and rough and machined surfaces to find cracks, seams, laps, laminations and porosity.

    Classification: Type 1, Method B Penetrant when using ZE-4B emulsifier. Type 1, Method D Penetrant when using ZR-10B (20%) remover.

    Sensitivity Level: Level 3 - High Sensitivity
