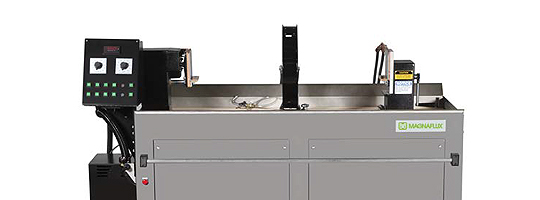

Magnaflux AD-2045

The A-Series is our most economical standard wet bench unit. It offers great part mobility for finding surface and sub-surface defects, and the versatility of using AC or DC magnetization (except for the A-2030). The two outputs are independently adjustable to set each magnetic field, circular or longitudinal. Magnetization shop time is adjustable, allowing better development of indications.

STANDARD FEATURES

Exterior:

Innovative pump system for fluid delivery, agitation with easy maintenance access

Push bar design for easy activation

Current assurance indicator for magnetic current flow

Large, easy to read Digital Ammeter

Independent Contact and Coil Current Controls

12 inch (30 cm) diameter coil

Footswitch-activated pneumatic headstock

Adjustable tailstock with crank

Stainless steel tank

Front and rear maple hardwood grilles

Interior:

Microprocessor control advanced technology; reduce components and increase reliability

Solid state circuitry

Liquid Resistant panels, allow ventilation while inhibiting fluid intrusion

SPECIFICATIONS

4000 amp AC/5000 amp FWDC magnetizing current capability at contacts

Demag—One Touch decaying AC

Duty Cycle 0.5 seconds on, 10 Seconds off (5% with Maximum of 5 seconds)

54 inch (137 cm) headstock/tailstock capacity

Infinitely variable current control

Available Voltages: 230, 380, 415, 460, 575, 50 or 60 hertz, single phase power

Recommended 20 Gallon (75 Liter) Tank Fluid Capacity

Minimum 40 PSI with 5 CFM capability

89” (224 cm) x 41” (104 cm) Foot Print, allow 24”(61 cm) per side for ventilation

OPTIONAL FEATURES

16” coil (41 cm) w/raising block up-grade (In lieu of 12” coil)

20” coil (51 cm) w/raising block up-grade (In lieu of 12” coil)

19.5” inch (50 cm) clam-shell coil (3-turn) w/raising block up-grade (In lieu of 12” coil)

Reinforced Rail for heavier part load (4,000 lbs. part capacity)

Oversized Contact assembly (12”x 12”) for headstock & tailstock

Rotating Contacts (70 lb. part capacity; Minimum 16" coil required)

NRTL Certification to CSA C22.2 No. 61010-1

Dual Palm Button

Configure Unit for 102” Part Capacity

Recommended 32 Gallon (122 Liter) Tank Fluid Capacity

136” (346 cm) x 41” (104 cm) Foot Print, allow 24” (61 cm) per side for ventilation

Configure Unit for 146" Part Capacity

Recommended 55 Gallon (209 Liter) Tank Fluid Capacity

180" (458 cm) x 41" (104 cm) Foot Print, allow 24" (61 cm) per side for ventilation
