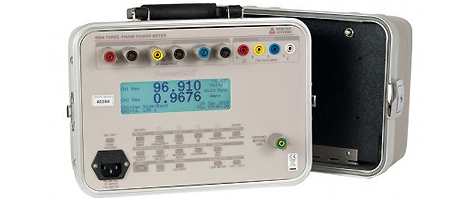

The Arbiter Systems^®, Inc. Model 929A Three Phase Power Meter is an economical alternative to both the Model 931A Power System Analyzer and the Model 930A Three Phase Power Analyzer when serial communication, dc voltage measurement, transducer calibration and timer features are not required. The Model 929A has the same ac accuracy as the Model 931A with PowerDSA^™ Digital Signal Analysis, and is a complete diagnostic tool for use in the substation and industrial power environment.

Model 929A measures all of the basic quantities: true-rms voltage and current, frequency and phase angle, as well as power quantities such as watts (W), watthours (Wh), volt-amperes (VA), volt-ampere hours (VAh), volt-amperes reactive (VAR), volt-amperes reactive hours (VARh), and power factor (PF), all with 0.11 % basic accuracy.

Measure harmonics and view the results graphically on the high contrast 240x64 graphic display. The two channels are normalized to Channel 1 fundamental phase, so you can see, for example, the relationship between current waveform distortions and voltage phase.
