Dissolved Gas Analysis (DGA) Instruments

The Doble Delphi Instruments are dissolved gas analysis monitors that help you track transformer health by providing early warning signs of problems such as overheating, insulation degradation or mechanical movement within the unit. The Doble Delphi provides this valuable information in real time, second by second.

The Doble Delphi is immune to oil surges and vacuums that may affect other sensors; in addition, it contains self-testing diagnostics to monitor its own performance.

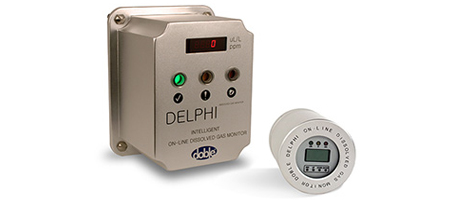

The Doble Delphi is available in Standard and Mini models. Each mounts directly to a transformer valve or can be mounted adjacent to the transformer when the need arises.

Use the Delphi Mini as part of your comprehensive fleet management program or to monitor smaller transformers in a cost-effective manner.

 Benefits

Patented* vacuum resistant membrane prevents failure during oil surges, maintenance or other activities
* patents include US and Canada

Fast response time: getting to 80% of step change in less than 7 minutes means that indications of a problem are given that much sooner and effectively

Gas selectivity is high – meaning appropriate measurements rapidly, whether single gas or combined gas

Micro pump option – allowing for oil circulation to ensure oil doesn’t go stale and give misleading results (Available in Standard Delphi)

Single valve application ensures minimal connection to the transformer

Robust, field ready device comes complete with self-test and diagnostics automatically performed on the sensor itself

Only requires one transformer valve for operation

Features

Single value output

High accuracy and repeatability

Micro-pump circulation (Available in the Standard Delphi)

Vacuum withstand

Moisture Detection (Available in the Standard Delphi)

Temperature & Sensor Condition Self Diagnostics

Continuous Level and trend analysis

On-line alarms and indicators

Front-panel configuration and PC based Software

Communication Options
